TokenizerManager
流式响应架构详解
总体概览：
sequenceDiagram
participant User as 用户
participant API as FastAPI Server
participant TM as TokenizerManager
participant Router as Router进程
participant Model as Model RPC
participant Detok as Detokenizer
User->>API: POST /generate (GenerateReqInput)
API->>API: obj.post_init()
API->>TM: generate_request(obj)
TM->>TM: 第一次请求创建handle_loop
TM->>TM: tokenizer.encode(text)
TM->>TM: ...

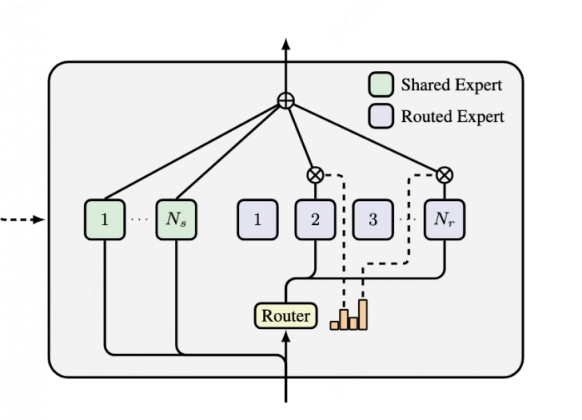

mlp计算流程
先来看一下上图经典mlp的计算：
gate和up的proj，可以cat起来一起算
gate后有一个silu激活，激活后的值和up后的进行点乘，这两个操作也是一起做的
点乘结果给到down_proj就是最后的输出
对于非moe的mlp计算，qwen2和qwen3都一样的用的类Qwen2MLP
核心计算MergedColumnParallelLinear和RowParallelLinear就是使用torch.linear的计算，如果是tp，就是直接进行矩阵分块
12345678910111213141516171819202122232425262728293031323334353637383940414243class Qwen2MLP(nn.Module):
def __init__(
self,
hidden_size: int,
intermediate_size: int,
hidden_act: str,
quant_config: Optional[Qu ...
SGLang源码解析封面
123456789101112131415161718192021222324252627282930313233343536373839404142434445464748495051525354555657585960616263646566676869707172737475767778798081828384858687888990919293949596979899100101102103104105106107108109110111112113114115116117118119120121122123124125126127128129130131132133134135136137138139140141142143144145146147148149150151152153154155156157158159160161162163164165166167168169170171172173174175176177178179180181182183184185186187188189190191192193194195196 ...
143a5a50a47c0b7d448749907319f4bcf2a14f711491a3ab6bc352526485536289a132d6d21be13a9d4d1189bad89330e00b9d7e0439b7a06816010b2ae3475809e63a0f1abb6079e7ba6a83bd2eaf14c791e47c16290be32a2b7f52d985c3aa618c648d2b95b1a0a3c40532b6415e6152b3eb8d1d77f9887da8eb22dda4093d5bddef2b2ee118753f680cfdb5fc2661cfc6888ea89d3d12bec0b3bf9d7a844e8ec4281d8e8c792aa408caf429a7a9b0f07c2b90f4af87c31f5e572d8cd556065d0083768560e27703b04dcc3ee1029ea0bf98c458cc854c6e5655818d622dbf2a227e129a410a7381754f6687d93ff1f1c1f89aa277a77f7 ...
进程结构
tp=1的情况 总共三个进程
启动命令：python3 -m sglang.launch_server --model-path /tmp-data/models/llama-2-7b --port 30000 --mem-fraction-static 0.8 --tp 1
查看进程树：ps -aux —-forest
123luban 3049112 21.6 0.0 7700748 758940 pts/6 Sl+ 11:48 0:09 | \_ python3 -m sglang.launch_server --model-path /tmp-data/models/llama-2-7b --port 30000 --mem-fraction-static 0.8 --tp 1
luban 3052085 32.5 0.0 56482984 769368 pts/6 Sl+ 11:48 0:06 | \_ python3 -m sglang.launch_server --model-path /tm ...
143a5a50a47c0b7d448749907319f4bcf2a14f711491a3ab6bc352526485536289a132d6d21be13a9d4d1189bad89330e00b9d7e0439b7a06816010b2ae3475809e63a0f1abb6079e7ba6a83bd2eaf14c791e47c16290be32a2b7f52d985c3aa618c648d2b95b1a0a3c40532b6415e6152b3eb8d1d77f9887da8eb22dda4093d5bddef2b2ee118753f680cfdb5fc26619293562d86d1fb84b64e14989313f1d3a1ced04969015c0642c6e7d68dbda061d2753222f76fd3b247f9d27c3bb8e33770b085376b3ffa8cc96cceca755ec5cb36273302b86e6821bce3ab9c78465fd77d98e480a260b29d6161baa952b22c2ab1e92d2e2bbdae213 ...
12345678910111213141516171819202122232425262728293031323334353637383940414243{
"architectures": [
"Qwen3NextForCausalLM"
],
"attention_dropout": 0.0,
"bos_token_id": 151643,
"decoder_sparse_step": 1,
"eos_token_id": 151645,
"full_attention_interval": 4,
"head_dim": 256,
"hidden_act": "silu",
"hidden_size": 2048,
"initializer_range": 0.02,
"intermediate_size": 5120,
"linear_conv_kernel_dim": 4,
"linear_key_head_dim": 128,
"linear_num_key_heads": 16,
"line ...
qwen3-next结构
模型共计 48 层，被划分为 12 组（每组 4 层）。
前 3 层 采用 Gated DeltaNet Linear
Attention，能够显著提升计算效率并降低显存占用。
第 4 层 为传统的 Full Self Softmax
Attention，在输出阶段额外加入了一道门控。
Gated DeltaNet 分析
关于Gated DeltaNet计算可以看这张图详细一点：
计算顺序：
五个linear矩阵乘
计算一维卷积
计算SiLU激活函数
计算Gated Delta Rule
Gated Delta Rule输入进行Zero-Centered RMSNrom
RMSNorm输出和的结果进行点乘
下面的代码主要来自transformers库，做了部分删减
1. 计算linear矩阵乘
1234567891011121314151617181920212223242526272829303132self.config = config
self.h ...
sgl-router的smart router策略
为什么要有sgl-router
flowchart LR
subgraph Client["💻 Clients"]
C1["Client 3"]
C2["Client 1"]
C3["Client 2"]
end
C1 --> RT
C2 --> RT
C3 --> RT
subgraph Router["sglang-router"]
RT["🔀 Router"]
end
subgraph PCluster["Prefill Workers (P-nodes)"]
P1["P1"]
P2["P2"]
P3["P3"]
end
subgraph DCluster["Decode Workers (D-nodes)"]
D1["D1"]
D2["D2"]
D3 ...
Git Commit 合并操作指南
场景描述
当需要将当前staged的代码合并到历史中的某个特定commit（而不是最新的commit）时，标准的git commit --amend无法满足需求，因为它只能修改最新的commit。
操作步骤详解
1. 查看当前状态
12345# 查看当前staged的文件
git status
# 查看commit历史，确定目标commit
git log --oneline -5
输出示例：
1234534e0fcd add click link to avatar # 最新commit
f42ce7a change author description
af1ae21 add head href link # 目标commit
bdc4b45 fix hexo-blog-encrypt show giscus comments
fbb3532 add comment giscus
2. 回退到目标commit
首先需要回到包含目标commit的状态：
12# 回退到目标commit
gi ...
